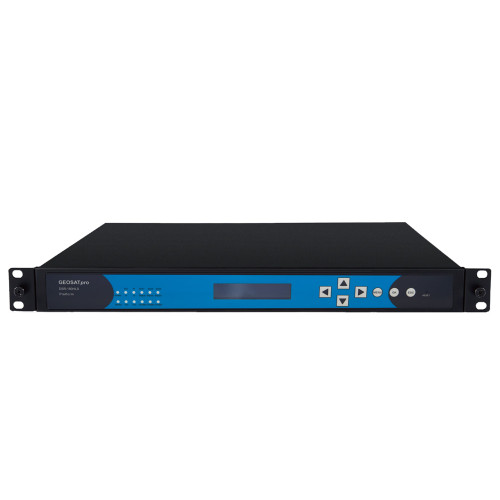

RECEIVER/HEADEND/MEDIA PLATFORM - GEOSATpro DSR180HLS RACK MOUNT IRD WITH HDMI, SDI, ASI, IP - MPEG2/H.264

$3,995.00
(No reviews yet) Write a Review
Width:
21.00 (in)
Height:
16.00 (in)
Depth:
5.00 (in)

The GEOSATpro DSR180HLS MEDIA PLATFORM and IRD integrated receiver decodes high definition and standard definition video. The DSR180HLS is capable of receiving signals from variable program sources including HLS Streams, RTP, UDP, RTSP and ASI.  The unit allows demuxing from ASI or UDP streams, cherry picking channels and building custom mux for ASI or TSIP output to the Transmitter or IPTV Headend.

Output interfaces include CVBS, HDMI, HD/SDI, ASI and TSIP. Variety of Encoders and transcoders are available as optional.

The DSR180HLS is a professional media platform that incorporates dual-channel IRD which receives live OTT streams from the internet, descrambles and decodes them to SDI and HDMI. It is able to integrate other sources and send ASI signal directly to station exciter or transmitter.

As customers transition from satellite transmission to less expense internet transmission, the DSR-180HLS is the perfect solution as it provides professional broadcast features in a cost-effective package.

  • DMPSMP-EN5-1U-4H UHD: HEVC/H.265 chip based encoding of 1 UHD/4HD channels
  • DMPSMP-8VSB:  4x 8VSB inputs (1 input per Digital Frequency)
  • DMPSMP-DVBS2V2:  4x DVB-S/S2 satellite inputs (1 input per Transponder)
  • DMPSMP-QAM-B: 4x QAM-B inputs
  • DMPSMP-EN2SDI-2HD:  2x SDI or AV encoder to MPEG-2/H.264 HD/SD
  • DMPSMP-EN4HDMI-4M2Axx: 4 channel HDMI encoder to H.264 HD/SD or MPEG-2 SD
  • DMPSMP-EN4HDMI-2M2Axx: 2 channel HDMI encoder to H.264 HD/SD or MPEG-2 SD
  • DMPSMP-TC4-2M2Axx: 2 channel transcoder to H.264 HD/SD or MPEG-2 SD
  • DMPSMP-TC4-4M2Axx: 4 channel transcoder to H.264 HD/SD or MPEG-2 SD
  • DMPSMP-LQAM-B-MOD-2CH:  2 channel low-cost QAM-B modulator
  • DMPSMP-QAM-B-MOD-4CH:  4 adjacent channel QAM-B modulator
  • DMPSMP-IQAM-xCH:  16, 12 or 8 channel QAM-B modulator agile channel placement
  • WAV-DMPSMP-8VSB-2CH:  2 channel 8VSB Modulator
  • DMPSMP-BISS:  BISS descrambling module
  • DMPSMP-CI:  2 slot DVB-CI descrambling module
  • DMPSMP-DECODER-HD:  2 channel decoder with 2x SDI out or 2x HDMI out



Specifications:

Management

Hardware Interface

1 x RJ45 (100Mbps)

User Interface

LED indicators

LCD screen

Front panel control

Web UI

SNMP (monitoring only)

DHCP and DNS



HLS Receiving

Interface

1 x GbE (RJ45)

Capability

2 independent HLS streams

Protocol

HLS (URL manifest.m3u8)



AES Descrambling

Algorithm

AES-128

Descrambling

Service level descrambling

Capacity

2 services

Key Rotation

URL manifest or integrate DRM



Physical & Environment

Input Voltage

90~240 VAC

Power Consumption

Max. 60W

Chassis Dimension

480mm x 44mm x 440mm (W x H x D), 1RU

Operating Temperature

0~45

Storage Temperature

-10~70

Operating Humidity

<95%

MTBF

≥200,000 hours



Closed Caption

Extraction

HLS stream WebVTT and 608/708

Embedding

608 and 708 caption embedding in SDI output



Chassis

Processing Capacity

800TS (approx. 1000 programs)

Data Processing

4Gbps

Daughter Board Slot

3 slots

Interface

2 x ASI inputs (BNC, Female, 75Ω ports)

2 x ASI outputs (BNC, Female, 75Ω ports)

1 x GbE TS/IP, TS/IP (RJ45), 64In32Out of SPTS/MPTS

1 x management (RJ45)



Decoding/Output

Interface

Supports decoding 2 HLS streams in both SDI and HDMI

Resolution

480i60, 576i50, 720p50/60, 1080i60/50, 1080p30/25

Audio

Supports 2PIDs of MPEG, AAC or AC3 audio for each video



FAQ’s:

• Does the DVB-S2 input module support receiving scrambled Digicypher and PowerVu signals?
• No, Digicypher and PowerVu are proprietary encryption standards that are only supported by Arris (Motorola) and Cisco receivers.
  The DVB-S2 input module supports unencrypted satellite signals. If the CI/BISS module is included in the chassis it can receive and descramble BISS or DVB-CI scrambled signals (with the appropriate CI CAM inserted).

• Does the EN2SDI-2HD support encoding to MPEG-2 HD, closed captions and AC3?
• Yes, the EN2SDI-2HD module is perfectly suited for the North American market. It supports MPEG-2 HD encoding (along with H.264 SD/HD and MPEG-2 SD). It also supports closed caption pass-through and AC3 audio encoding.

• Does the EN4HDMI module support HDMI inputs with HDCP enabled?
• This module does not support HDMI inputs with HDCP enabled at this time.

• Does the TC4-4M2AXX /TC4-2M2AXX transcoder module support transcoding to MPEG-2 HD?
• The TC4-4M2AXX /TC4-2M2AXX module supports transcoding output formats of H.264 HD/SD and MPEG-2 SD. MPEG-2 HD is not supported as an output format. H.264 HD/SD and MPEG-2 HD/SD are all supported as input formats.

• Does the TC4-4M2AXX /TC4-2M2AXX transcoder module support transcoding closed captions?
• At this time, closed caption transcoding is not supported in the TC4-4M2AXX /TC4-2M2AXX module.



Two Year warranty. Extended warranty and support for 4 years is $499.
