Product Overview
The GEOSATpro DSR160ASI IRD integrated receiver decodes both high definition and standard definition video. The DSR160ASI is capable of receiving signals from variable program sources including DVBS, S2, DVB-ASI, QPSK, 8PSK and support for 4:2:0 chroma. Output interfaces include CVBS, HDMI, AES/EBU HD/SDI and ASI. - Please choose upgraded DSR180IP or DSR180QAM model to include additional features.
The DSR160ASI has 2 common interface slots capable of decrypting multiple channels. With the LAN control and monitoring function by remote web-based management and front panel controls, this user-friendly decoder is ideal for signal conversion and distribution for SD or HD-based digital video head-end system.
Discounts Available for broadcasters and system integrators on quantity purchases. Please contact us to quote your project.
Features:
- Fully compliant with H. 264/MPEG-4-AVC HP@L4, MPEG-2 MP@HL, MPEG-2 MP@ML and DVB-S/S2, support for 4:2:0 chroma and ASI transport stream input and output
- 2 Common Interface (CI) for descrambling major CAS including Irdeto, Viaccess, Conax, Mediaguard, Nagravision, Comvenient / Betacrypt, CTI, etc.
- Compatible with Multi-decrypt CI Modules
- Program filtering support
- Closed Captioning via EIA-608, VBI teletext, EBU subtitle and DVB subtitle processing (note full EIA-708 support available in DSR180ASI model)
- Support NTSC, PAL and SECAM
- Composite CVBS output
- HDMI output
- AES / EBU Digital Audio output
- HD / SD SDI video output with digital audio embedded
- Full control via front panel or Network Management Software (NMS)
- Preset Channel List
- Automatic channel change between two channels
- Software upgradeable via NMS
- BISS and BISS-E decryption

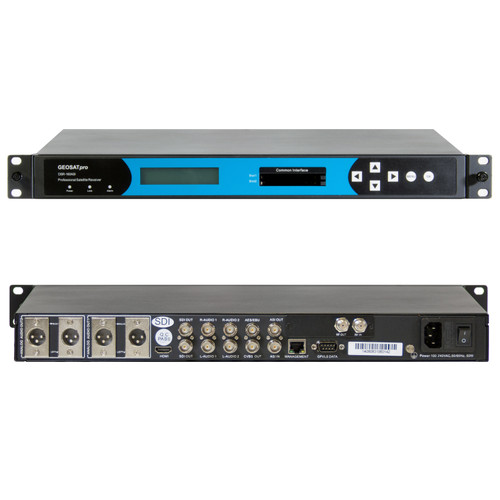

Rear Panel:
Specifications:
| DVB-S / S2 Inputs | |
| Constellation: | QPSK, 8PSK |
| Symbol Rate: | 1-45 Mbps |
| FEC: | All rations compliant with standard |
| Signal Level: | -65 ~ -25 dBm |
| DVB-ASI Input | |
| Connector: | 1 x BNC 75 ohm |
| Packet Length: | 188 and 204 byte packets |
| TS Max bitrate: | 72 Mbps |
| Conditional Access | |
| Interface: | 2 x CI slots |
| CA Methods: | Multicrypt, Simulcrypt |
| CAS: | Conax, Irdeto, Viacess, Nagravision, etc. |
| Video / Audio Outputs | |
| CVBS: | 1 BNC |
| Component |
|
| HDMI: | 1 x HDCP, 720p, 1080i, 1080p |
| HD/SD-SDI: | 2 x with embedded digital audio |
| Audio: | 1 x AES/EBU digital audio output |
| DVB-ASI Outputs | |
| Connector: | 2 x BNC 75 ohm |
| Packet Length: | 188 byte packets |
| TS Max Bit Rate: | 72 Mbps |
| Video and Audio Decoding | |
| Video decoding formats: | MPEG-2 and MPEG-4, H.264, SD and HD |
| Video formats: | 480i, 480p, 576i, 720p, 1080i, 1080p59, 1080p60 |
| Analog output: | PAL, NTSC, SECAM |
| Audio decoding: | MPEG1 Layer II Dolby Digital (AC-3) Dolby Digital Plus (E/AC-3) AAC (MPEG2, MPEG4/HE v1,2 ,MPEG4/LC |
| Control & Monitoring | |
| Local: | Front panel operation – LCD display, Control keys |
| Remote: | Remote Web-based management via Ethernet (TCP/IP) |
| Physical & Power | |
| Input Voltage: | AC 90V ~ 240V, 50/60 Hz |
| Power Consumption: | 30W |
| Dimensions: | 1 RU 19 inch rack 19” (W) x 10.8” (D) x 1.7” (H) 484mm x 274mm x 44mm |
| Weight: | 8.14 lbs. (3.7 Kg.) |
| Certifications: | FCC, CE, RoHS
|
We test and verify every receiver before we ship it out to our customers to insure it is performing according to it's design:
- We verify video and audio output
- We verify reception of vertical and horizontal channels
- We test all USB ports
Click here to download DSR160ASI HD-IRD Manual.pdf
Click here to download GEOSATpro DSR160ASI HD-IRD Spec Sheet
