Product Overview

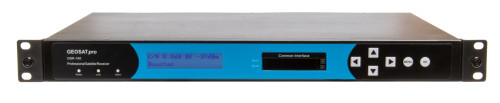

The GEOSATpro DSR160 IRD integrated receiver decodes both high definition and standard definition video. The DSR160 is capable of receiving signals from variable program sources including DVBS, S2, DVB-ASI, QPSK, 8PSK and support for 4:2:0 chroma. Output interfaces include CVBS, HDMI and Component. - Please choose upgraded DSR160SDI, DSR160ASI, DSR180ASI or DSR180QAM model to include additional features.

The DSR160 has 2 common interface slots capable of decrypting multiple channels. With the LAN control and monitoring function by remote web-based management and front panel controls, this user-friendly decoder is ideal for signal conversion and distribution for SD or HD-based digital video head-end system.

This Unit was developed with large private networks and radio stations in mind to deliver high quality commercial quality equipment.


  • Fully compliant with H. 264/MPEG-4-AVC HP@L4, MPEG-2 MP@HL, MPEG-2 MP@ML and DVB-S/S2 and support for 4:2:0 chroma
  • 2 Common Interface (CI) for descrambling major CAS including Irdeto, Viaccess, Conax, Mediaguard, Nagravision, Comvenient / Betacrypt, CTI, etc.
  • Compatible with Multi-decrypt CI Modules
  • Program filtering support
  • Closed Captioning via EIA-608, VBI teletext and DVB subtitle processing (note full EIA-708 support on SDI output is available in DSR180ASI model)
  • Support NTSC, PAL and SECAM
  • BISS and BISS-E decryption
  • Component Y-Cr-Cb and Composite CVBS output
  • HDMI output
  • Two pairs of BNC/RCA unbalanced audio outputs
  • Two pairs of XLR balanced audio outputs
  • Full control via front panel or Network Management Software (NMS)
  • Preset Channel List
  • Automatic channel change between two channels
  • Software upgradeable via NMS

Click on image below to download Larger image of a Rear Panel:

DSR160 Rear Panel

 DVB-S / S2 Inputs
Constellation:  QPSK, 8PSK
Symbol Rate:  1-45 Mbps
FEC:  All rations compliant with standard
Signal Level:  -65 ~ -25 dBm
 Conditional Access
Interface:  2 x CI slots
CA Methods:  Multicrypt, Simulcrypt
CAS:  Conax, Irdeto, Viacess, Nagravision, etc.
Video / Audio Outputs
CVBS & Component:  BNC Connectors
HDMI:  1 x HDCP, 720p, 1080i, 1080p
Audio:  2 pairs of Balanced XLR outputs + 2 pairs of unbalanced BNC outputs
Video and Audio Decoding
Video decoding formats:  MPEG-2 and MPEG-4, H.264, SD and HD
Video formats:  480i, 480p, 576i, 720p, 1080i, 1080p59, 1080p60
Analog output:  PAL, NTSC, SECAM
Audio decoding: MPEG1 Layer II
Dolby Digital (AC-3)
Dolby Digital Plus (E/AC-3)
Control & Monitoring
Local:  Front panel operation – LCD display, Control keys
Remote:  Remote Web-based management via Ethernet (TCP/IP)
Physical & Power
Input Voltage:  AC 90V ~ 240V, 50/60 Hz
Power Consumption:  30W
Dimensions: 1 RU 19 inch rack
19” (W) x 10.8” (D) x 1.7” (H)
484mm x 274mm x 44mm
Weight:  8.14 lbs. (3.7 Kg.)
Certifications:  FCC, CE, RoHS

Click here to download DSR160 HD-IRD Manual.pdf

Click here to download GEOSATpro DSR160 HD-IRD Extended Spec Sheet
